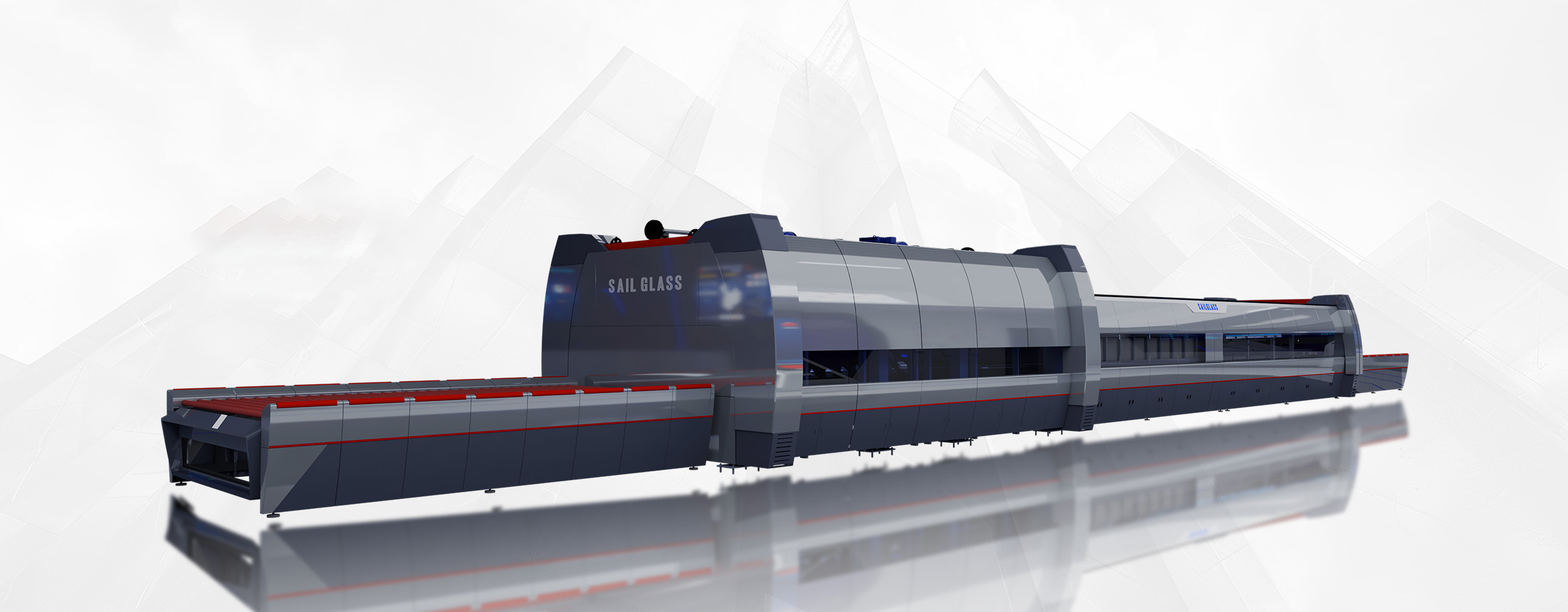

TYPE QHP-DT 2436 FLAT & CONVECTION & PASSING TYPE GLASS TEMPERING FURNACE
Technical Specification
1. Equipment Application
QHP-DT3624 Flat & Convection & Passing Type Glass Tempering Furnace is specialized equipment for the manufacture of flat tempered glass (thermally enhanced safety glass), the products used in construction, household appliances, automobile and other industries. |
2. Product specifications and quality requirements
2.1 Flat Glass size
Maximum glass size | 3600mm×2440mm |
Minimum glass size | 300mm×200mm |
Thickness range | 4mm~19mm |
Curvature tolerance | 2 mm |
Flat glass refer to transparent, tinted ,single side screen printing ,ordinary coated float glass and low-e glass (E≥0.04); and raw glass sheets conform to GB1614-1999 requirements, and glass should be chamfering ,fine grinding,washing and drying. | |
2.2 product quality requirements
Product quality requirements | Product quality conform to Chinese national standard GB/15763.2—2005》which is equivalent to Japanese standard J1SR3206-:2003 and American standard ANSI97.1-2004 |
Glass stress uniformity | Uniform particle state |
Glass tempering quality | Consistent with each batch |
Arch deformation stress | ≤0.3% |
Waveform deformation stress | ≤0.2% |
