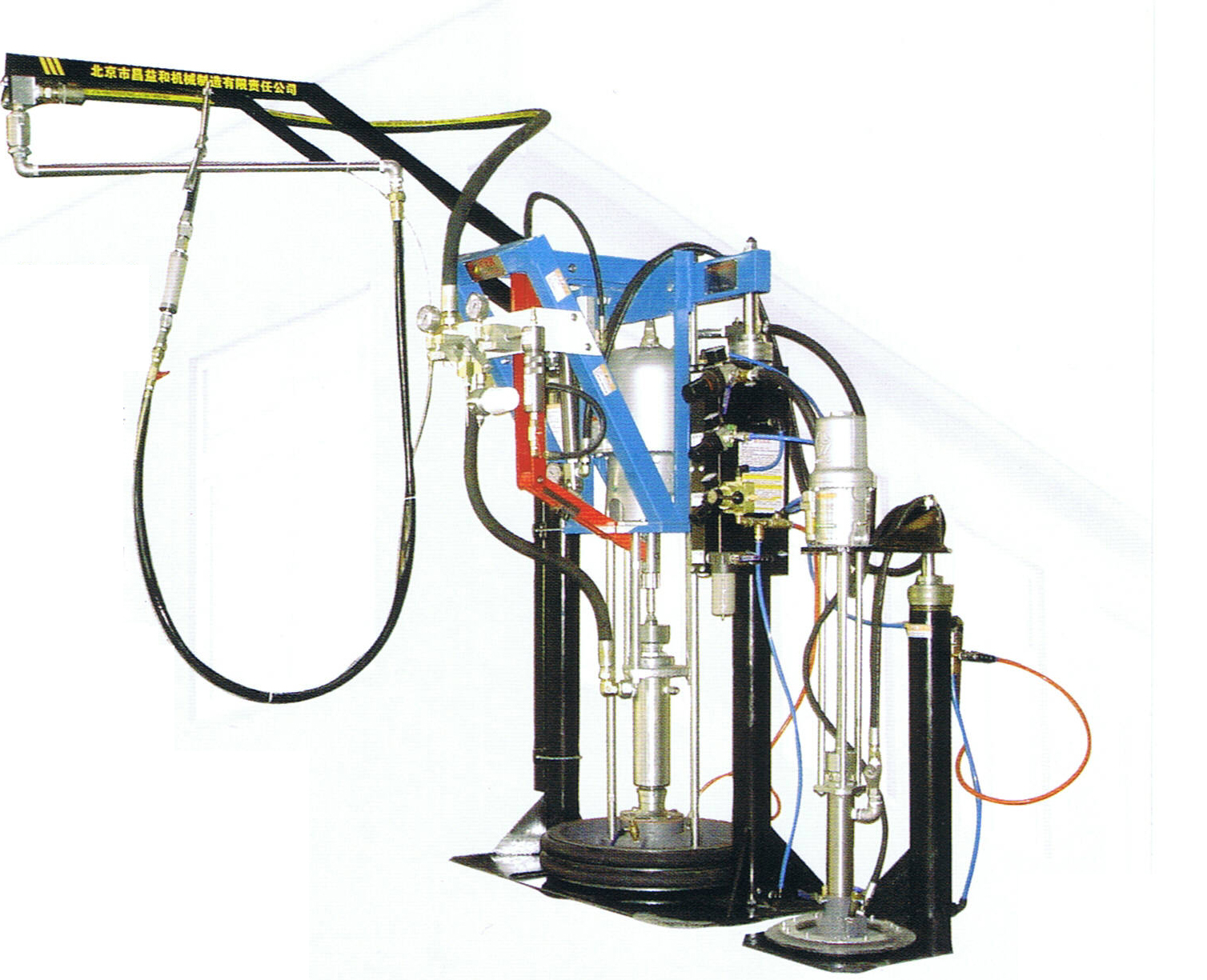

The CYH200-155 System includes GRACO popular KING-powered proportioning pump mounted on a dual post pneumatic ram. The resin pump is fitted with a 55 gallon (210 liter) ram plate which allows the viscous base fluid to be pumped directly from the barrel.

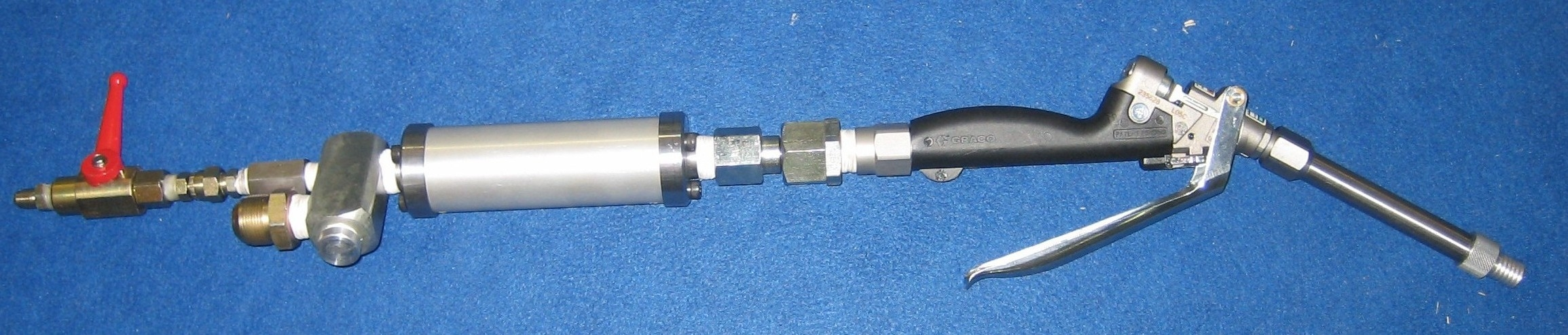

A metering feed pump is used to process materials with a ratio range of 6:1 to 14:1 by volume. The curative supply pump is made of stainless steel with a 5 gallon (20 liter) inductor plate and single post ram. The dispense valve requires no flushing and uses a disposable mixer. The hand held, air-operated valve has Severe Duty needles and seats with snuff-back action.
Features▪In line mixing system ensure material savings by keeping mixed material minimum.
▪Versatile and flexible with material ratios
check ratios system
▪Only pneumatic
structure simpleness & easy to use & easy to maintain
Typical ApplicationsInsulated glass sealant
Curtain wall structural sealant
Typical Fluids Handled• Silicones
• Polysulfides
• Polyurethanes
Technical Specifications
Shipping weight . . . . . . . . . . . . . . 550kg
Wooden box sizes(export goods) . . 1100 mm x 1200 mm x 1700 mm
Mix ratio . . . . . . . . . . . . . . . . . . 6:1 to 14:1 by volume
Fluid to air ratio . . . . . . . . . . . . . . . . . . . 50:1
Air consumption . . . . . . . . . . . . . . . . . . . 0.8M3/min
Air pressure 0.5-0.8MPA
Maximum working pressure . . . . . . . . . . . . . . . . . . . . .21MPa
Fluid inlet base ……………………………………………….….. 55 gal /
Fluid inlet catalyst . . . . . . . . . . . . . . . . . . …………………. .. 5gal
Flow rate . . . . . . . . . . . . . . . . 3-12 lbs/min typical
