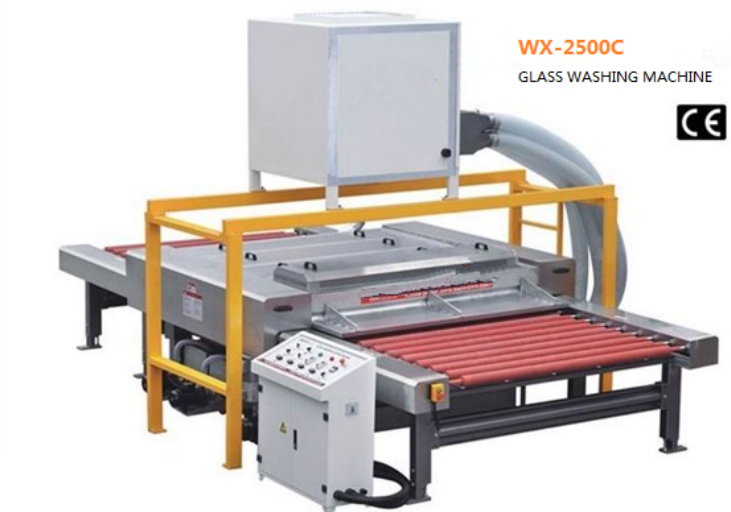

TYPE WX2500C GLASS WASHING & DRYING MACHINE(Soft LOW-E, Energy-efficient Type)
I.Structure Features：
1.1 Main drive is gear drive, inverter speed control and digital display. Brush roller drive of washing section is drove by upper and lower motors with separate belts, which has smooth speed and long service life.
1.2 Washing section and drying section can be rose up max. to 350mm as a whole, which is convenient to wash and maintain.
1.3 The machine has three pairs of brushes (φ160mm), which can be used for washing LOW-E glass, ordinary coated and solar glass.
1.4 The machine has two pairs of air knife which has large wind and good drying effect. The machine has heating system.
1.5 The machine structure is aluminum alloy assembled structure.
II.Technical Parameters：
2.1Max. Glass Width：2500mm
2.2 Min. Glass Size：400mm*400mm
2.3 Glass Thickness 3mm-25mm
2.4 Speed Range：0-12m/min
2.5 Total Power：35KW
2.6 Machine Size（L* W* H）: 5500*3600*2840mm
2.7Weight: 3820Kg
