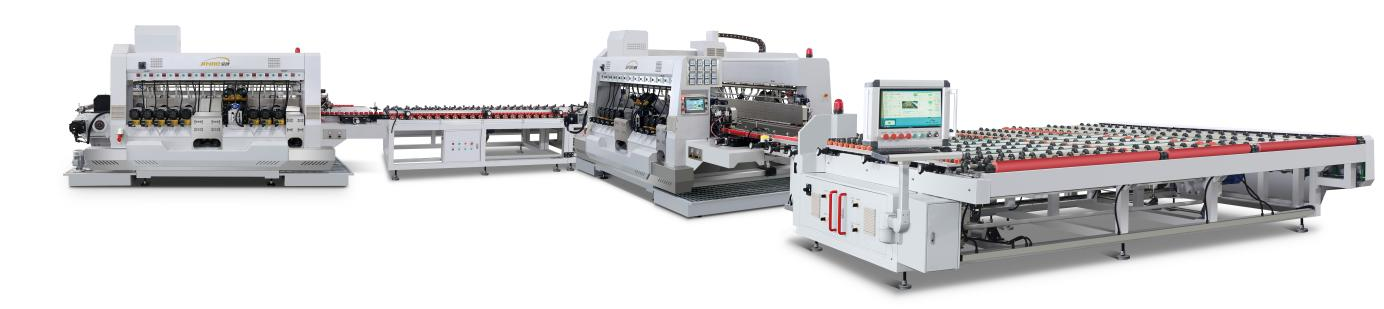

Standard / High Speed Glass Straight Line Double Edger Line - L Type
Note: This line includes 4 machines, 1 set of Automatic Measure Table, 2 sets of Double Edgers with polish and 1 set of L Type Transfer Table
Standard / High Speed Glass Straight Line Double Edger Line - I Type
Note: This line includes 4 machines, 1 set of Automatic Measure Table, 2 sets of Double Edgers and 1 set of I Type Transfer Table
********************************************************************************************************************
Main Technical Parameters
Max Process Size | ◎ 12m / 10m / 9m / 8m / 6m / 5m / 4.5m / 3.7m / 3.3m / 3m / 2.5m / 2m / 1.6m, etc ◎ optional size: contact for details |
Min Process Size | ◎ 300 mm * 300 mm ◎ optional size, contact for details |
Glass Thickness | ◎ 3 - 25 mm ◎ optional, 2 mm, contact for details |
Angle of Arris Edge | 45 degree |
Max Width of Arris Edge | 3 mm |
Speed Range of Grinding | Max 25 meter / min |
Quantity of Grinding Wheels | Optional, 20, 22, 24, 26, 28, 30 |
Functions | Optional, Polishing, Low-E Film Deletion, Corner Cut |
Height of Working Table | 900 - 950 mm |
Power Supply | 380V 50Hz 3P or Specified |
