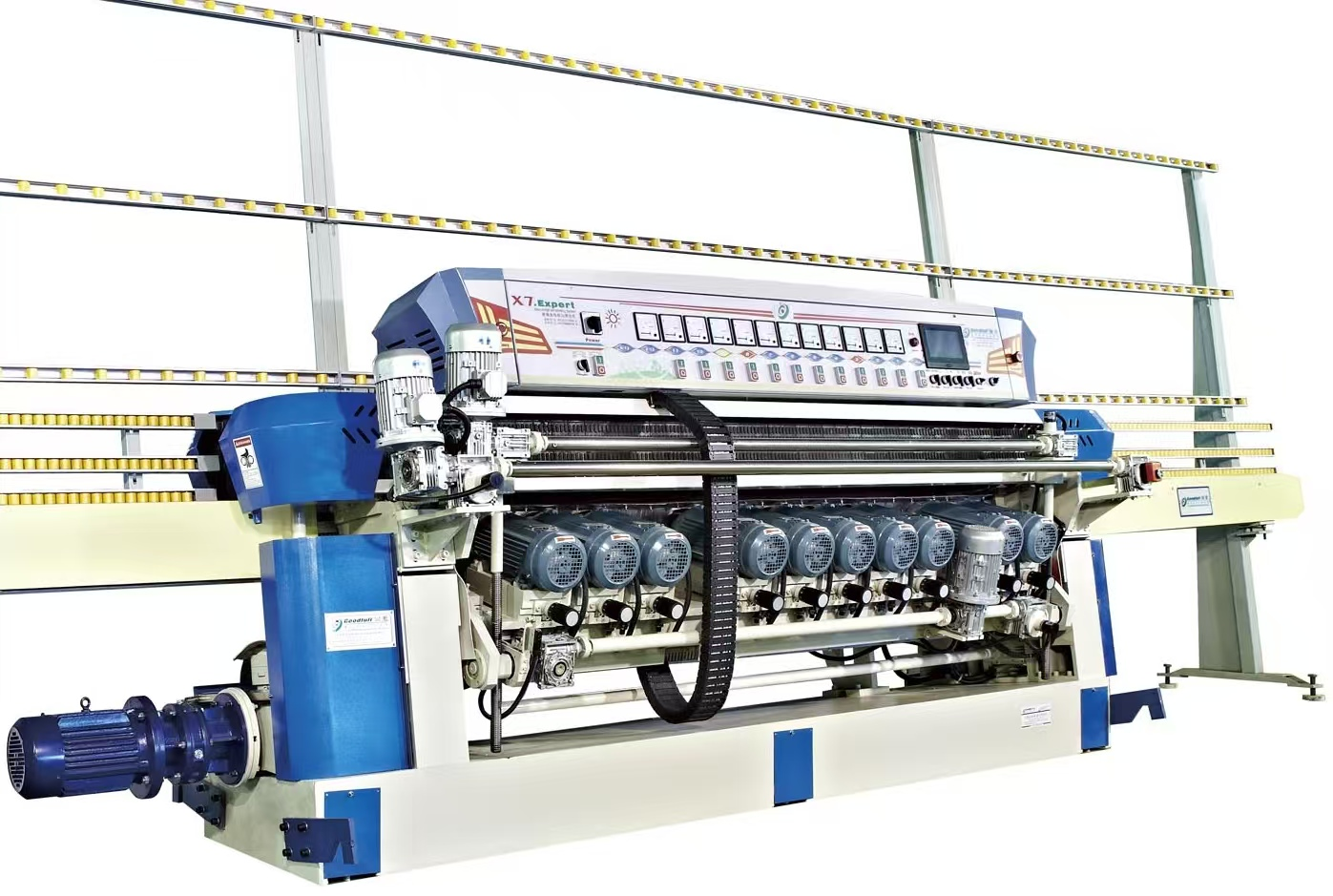

TYPE X261P GLASS STRAIGHT-LINE BEVELLING MACHINE
1.Machine features:
This model adopts moving up & down front beam to adjust different glass size. Front and back conveyor chain adopts big ball bearing chain to work with special dealing of craft steel core glue plate for main transferring, with stable transmission and high precision. It adopts ABB brand special motor, low energy dissipation, good stability. With frequency changer speed, wide range speeding, easily to control. It is installed with PLC.
2.Technical parameters:
Processing speed | 0.6-6.0m/min |
Max. bevel width | 50mm |
Bevel angle | 3°- 23° |
Min glass size | 35mm x 35mm |
Thickness | 3～19mm |
Power | 27kw |
Occupancy | 7400 x 1200 x 2300 mm |
Weight | 4500kg |
