I. Description of the machine

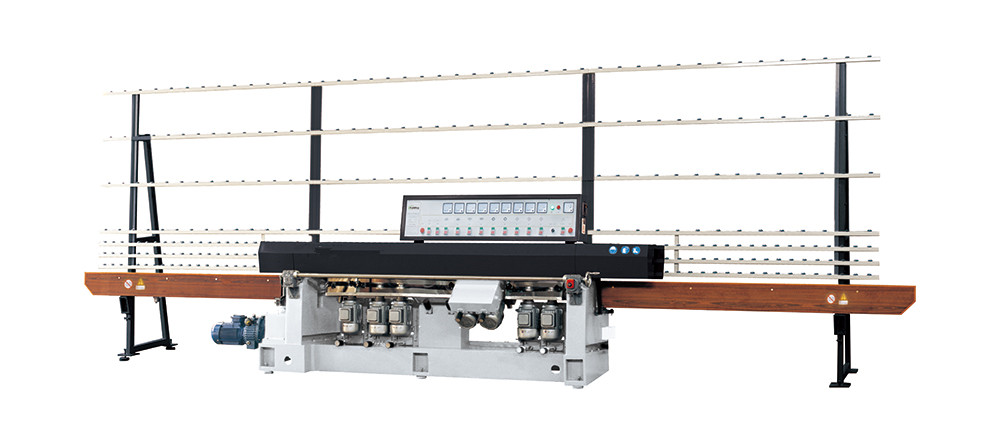

LMLZ9325 is specialized in edging and polishing glass. It can edging and polishing the flat edge at one time. The transmission drive adopts mechanical step-Less speed change machine’s speed, with large adjustable range and stable speed change. Both the front and rear girders and the bed of the base are made of thickened and enlarged cast iron, which has good stability after high temperature annealing and aging treatment. The equipment is easy to operate, stable in performance and reliable in quality. It is the first choice for the majority of glass companies. It can be equipped with the PLC per customer’ s requirement.
Ⅱ.Main technical parameter：
1、Voltage/HZ：380V/50HZ according to customer’s
2、range of speed：0.5～6 m/min
3、min. processing glass size：80*80mm
4、max. processing glass size：3000*3000mm
5、processing glass thickness：3～25 mm（it can be customized）
The conveyor belt adopts the chain drive, it is durable.
Specification of general model：
Model | Overall dimension (LxWxH mm) | Total power (Kw) | weight (Kg) | remark |
LMLZ-9325 | 6800x1000x2500 | 20.5 | 3000 | 9motors |
