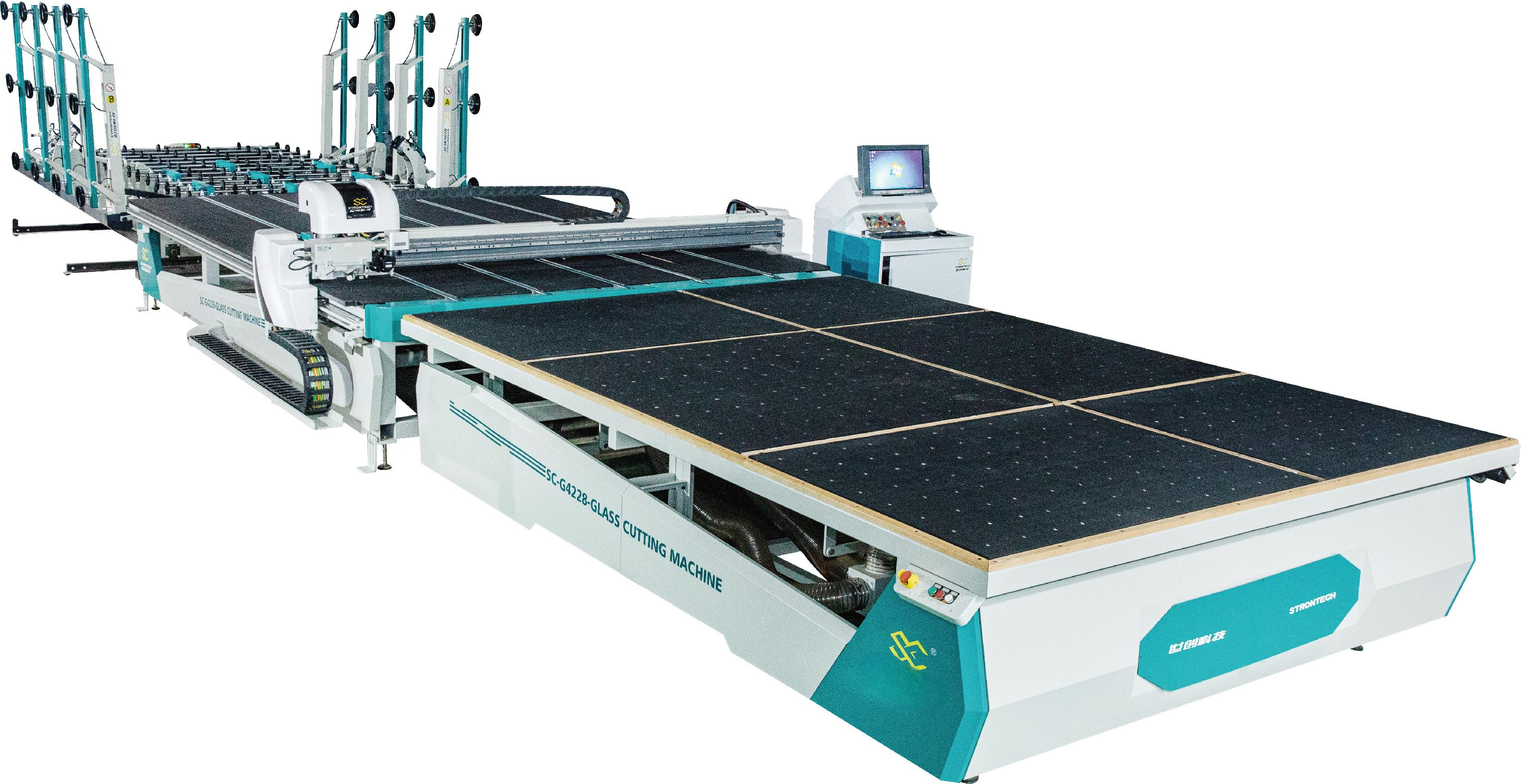

For the industry like electric appliance,solar panel and automotive glass,This series machine designed with linear guide system,which make a much better accuracy.
Loading Cycle:30-50s |
Cutting Thickness:2-19mm |
Cutiing Accuracy:±0.13mm |
Cutting Speed:180m/min |
Model and parametes:
Item | Model | Trans Mode | Accuracy(mm) | Max Glass Size(mm) | Thickess(mm) | Power(kw) | Main s(V/Hz) |
1 | SC2520 | Belt | ±0.13 | 2500×2000 | 2-19 | 13-15 | 380/50 |
2 | SC4228 | Belt | ±0.13 | 4200×2800 | 2-19 | 15-18 | 380/50 |
3 | SC5133 | Belt | ±0.13 | 5100×3300 | 2-19 | 23-26 | 380/50 |
4 | SC6133 | Belt | ±0.13 | 6100×3300 | 2-19 | 23-26 | 380/50 |
