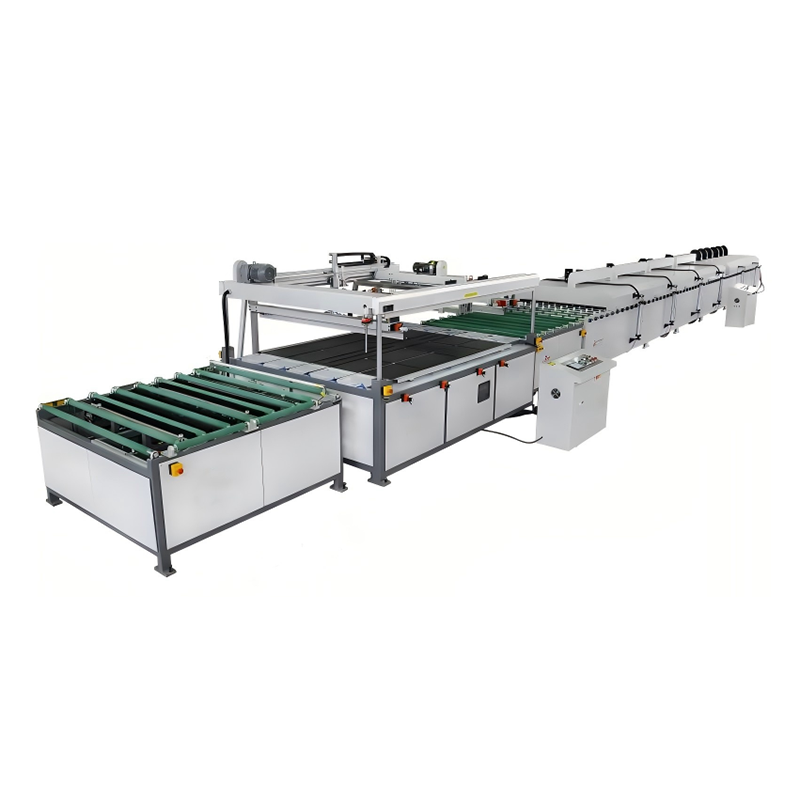

Full Automatic Flat Glass Silk Screen Printing Machine
APPLICATON :
Suitable for printing on variety of flat glass with large and medium-size ,Auto glass ,arts and crafts glass,LGP guide plate of organic glass,board ,metal plate and all kinds of medium and large size hard flat plate.
Technical parameter:
Type | AY1013SZ | AY1326SZ | AY1925SZ | AY2030SZ | AY2436SZ | AY2445SZ | AY2551SZ |
Max printing dimension | 1000*1300mm | 1300*2600mm | 1900*2500mm | 2000*3000mm | 2400*3600mm | 2400*4500mm | 2500*5100mm |
Mini printing dimension | 400*500 | 500*700mm | 600*700mm | 700*800mm | 700*800mm | 700*900mm | 700*900mm |
Max frame size | 1400*1900 | 1800*3300mm | 2400*3200mm | 2600*3800mm | 3000*4400 | 3000*5300mm | 3100*6000mm |
Thickness of printing stock | 3-19mm | 3-19mm | 3-19mm | 3-19mm | 3-19mm | 3-19mm | 3-19mm |
List of main parts:
1. All the actions of this machine is centralized controlled by Japanese Mitsubishi(MITSUBISHI) PLC. It can reduce the failure rate,easy maintenance..
2. It adopts Japan Mitsubishi(MITSUBISHI) man-machine interface control,can clearly display the error operation and all the command prompt.
3. Power control system uses France Schneider and Japan’s Panasonic (NAIS) electrical components.
4. Printing transmission uses Japan Mitsubishi to drive with Taiwan Leeming (LiMing) Gear Motor.
5. Printing transmission uses Taiwan (HIWIN) linear guide rail and the United Kingdom (MEGADYNE) timing belt.
6. All the fittings, cylinders use Taiwan(AIRTAC) brand.
